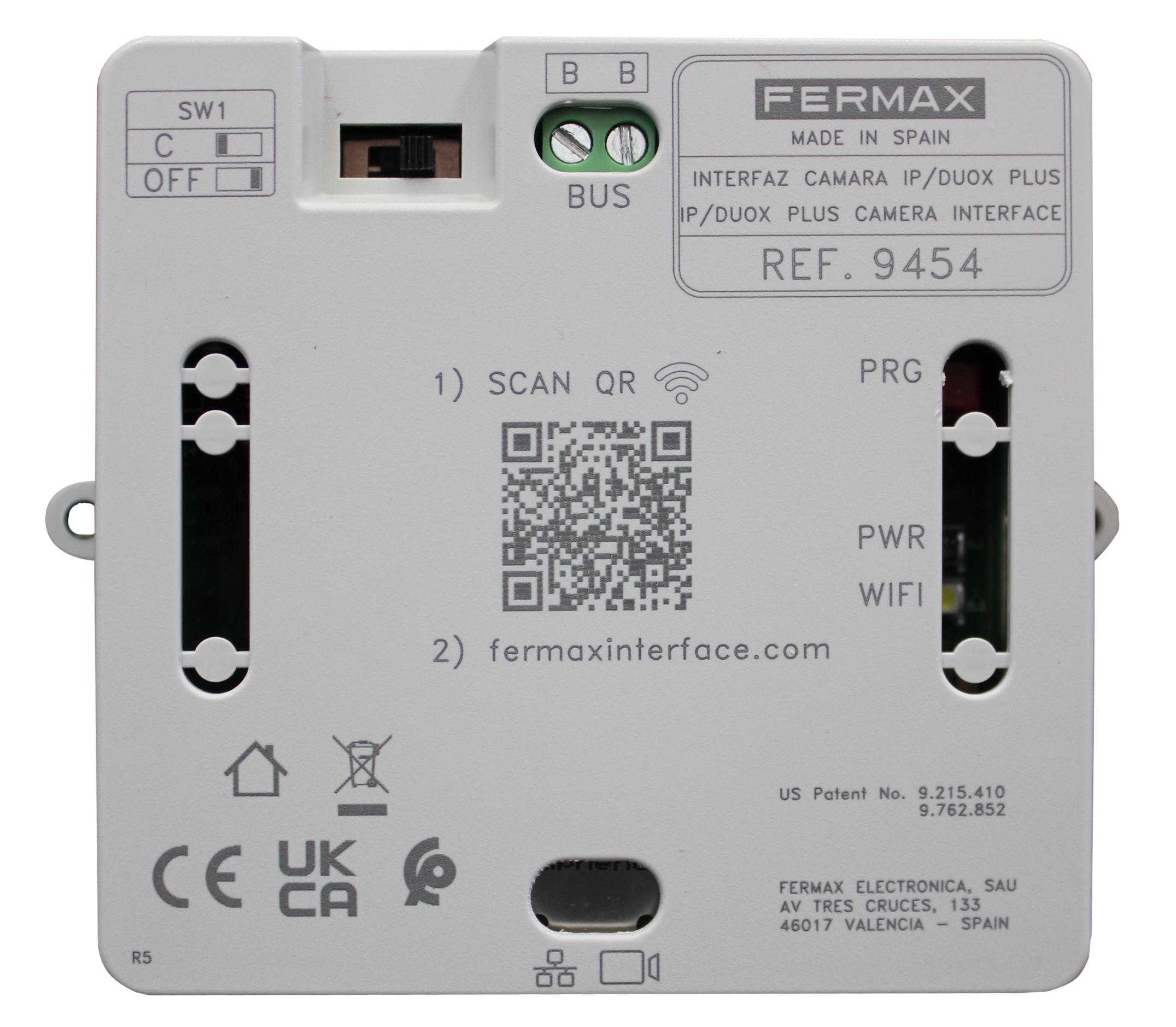

Description
- Allows the integration of IP video CCTV cameras in a DUOX PLUS installation.
- It transforms the IP video signal (RTSP standard protocol) into a DUOX PLUS signal that is connected directly to the DUOX PLUS bus.
- Generally, an interface will be required for each camera installed in the DUOX PLUS installation. However, in the particular case of 2 cameras in the same Block, up to 2 cameras can be configured in the same interface (in this case a PoE switch will be necessary).
- Each camera will be powered externally with its additional power supply (ref. 9982+ref. 9984) or through a PoE switch.
- The interface will be powered directly from the DUOX PLUS bus.
- Configurable by Wi-Fi, from the mobile through an embedded webserver.
- An entrance panel can be associated to the interface, in such a way that, while the IP camera is being viewed, the opening of said associated entrance panel can be activated.
NOTE : It is not possible to have a visualization of the IP camera and at the same time have audio from a panel.
AUTO-ON OPERATION with Interface installed. At rest, press the “camera button” on the monitor to auto-start with different panels / cameras. Pressing sequentially, the display is:
- Panel 0 or Camera 0 of the block itself (one or the other).
- Panel 1 or Camera 1 of the block itself (one or the other).
- Panel 0 or Camera 0 of the General Entrance (one or the other).
Technical specifications
TECHNICAL CHARACTERISTICS
| supply voltage | 18Vdc | 24Vdc |
| Consumption at rest | 140mA (max) | 104mA (max) |
| active consumption | 153mA (max) | 110mA (max) |
| Operating temperature | -10ºC | +55ºC |
| Humidity (non-condensing) | 5% | 90% |
Technology: DUOX
Measures of the product: 86 x 106 x 31 mm
Weight: 0.237 kg
Measures of the packed product: 6,5x18,1x9,6 cm
EAN 13: 8424299094540
