COLOUR 4+N VIDEO SKYLINE MODULE W
REF: 7406 Building Colour Video Amplifier Module (Complete) for analogue 4+N and MDS systems on SKYLINE panels. Size W. Anodised aluminium front.
Zie meer COLOUR VDS VIDEO SKYLINE MODULE W
REF: 7421 VDS audio amplifier module (5-wire/3+coax) on SKYLINE panels. Size W. Anodised aluminium front with interior protected by a stainless steel grille. With COLOUR camera and illumination for low light vision.
Zie meer SKYLINE MEMOKEY W
REF: 7438 They will perform the functions that are done from the apartment terminal, and (...)
Zie meer SKYLINE PROXIMITY READER V
REF: 7440 Modular 125KHz proximity reader, can be configured as AUTONOMOUS, AC+ CENTRALISED, Wiegand 26 or Data/Clock. For combination with other controllers.
Zie meer VDS AUDIO SKYLINE MODULE W
REF: 7415 VDS (3-wire bus) audio amplifier module on SKYLINE panels. Size W. Anodised aluminium front with interior protected by a stainless steel grille.

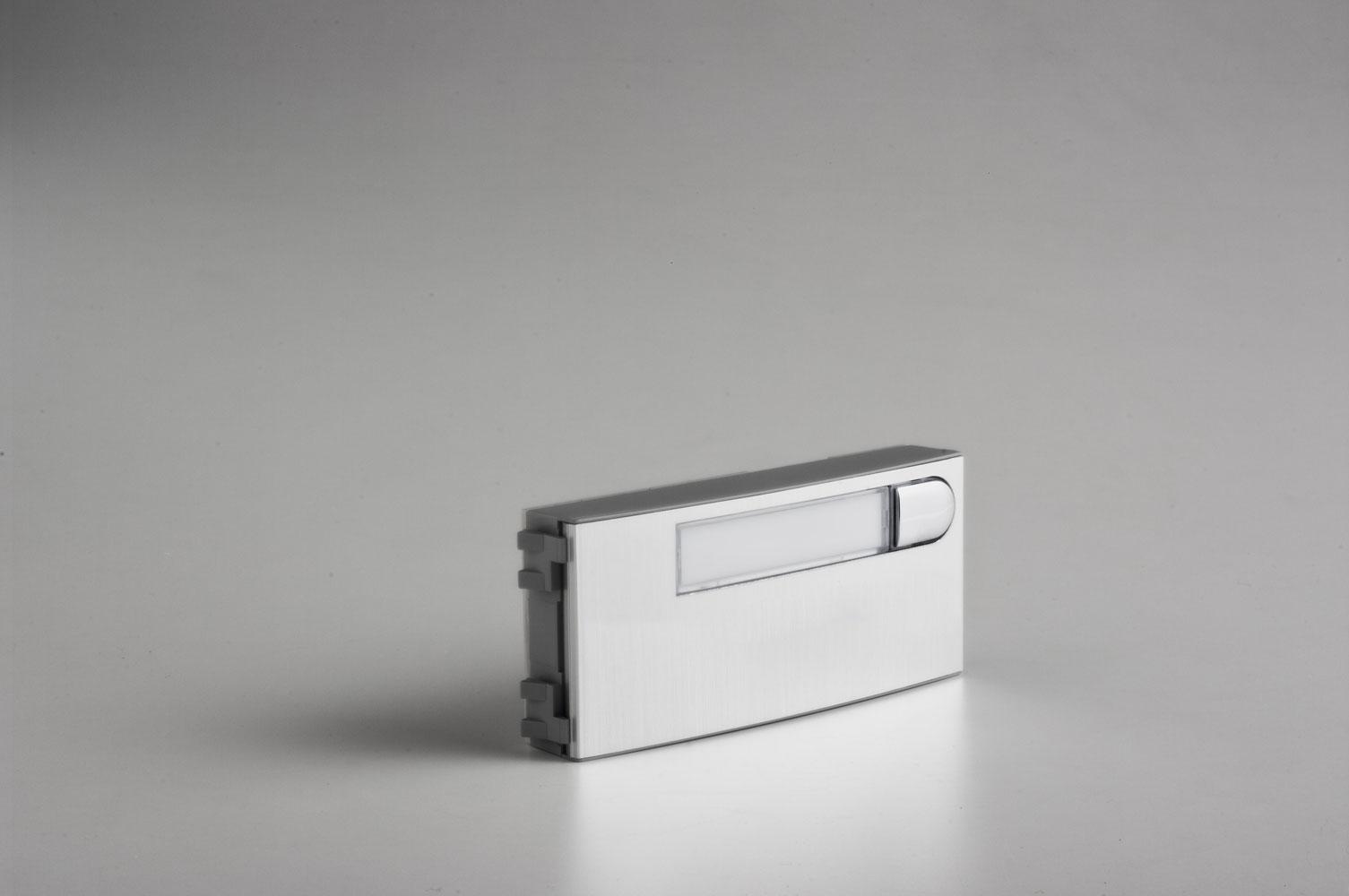

Zie meer 1 PUSH. 101 V 4+N SKYLINE
REF: 7373 SKYLINE 1-button module (1 row x 1 column) for analogue 4+N and MDS system. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.

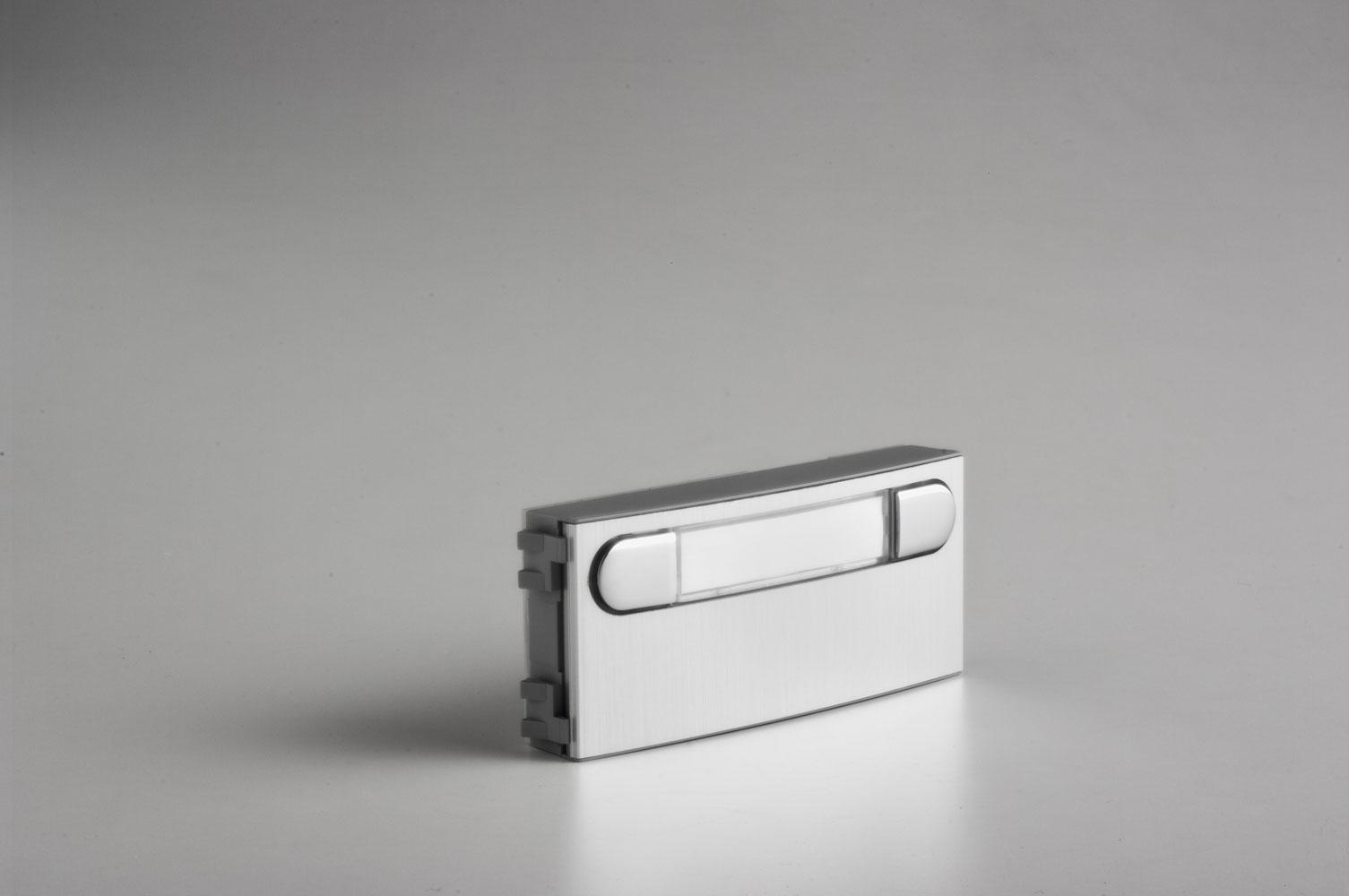

Zie meer 1 PUSH. 101 V VDS/BUS2 SKYLINE
REF: 7375 SKYLINE 1-button module (1 row x 1 column) for DUOX PLUS, BUS2 and VDS systems. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer 2 PUSH. 102 V VDS/BUS2 SKYLINE
REF: 7368 SKYLINE 2-button module (2 rows x 1 column) for DUOX PLUS, BUS2 and VDS systems. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.

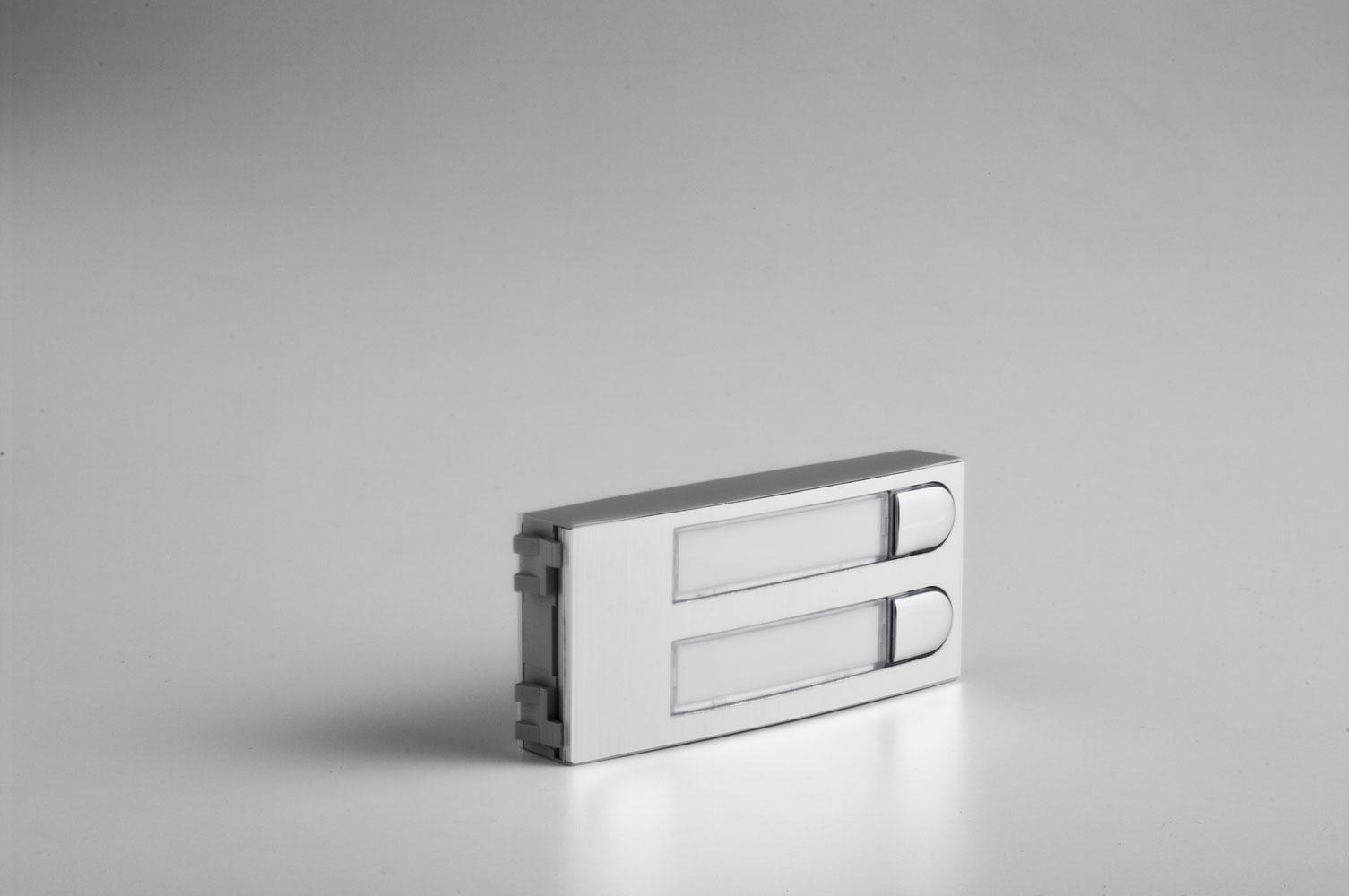

Zie meer 2 PUSH. 201 V 4+N SKYLINE
REF: 7374 2-button SKYLINE module (2 rows x 1 column) for analogue 4+N and MDS system. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer 2 PUSH. 201 V DUOX/VDS SKYLINE
REF: 7376 SKYLINE 2-button module (2 rows x 1 column) for DUOX PLUS, BUS2 and VDS systems. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.

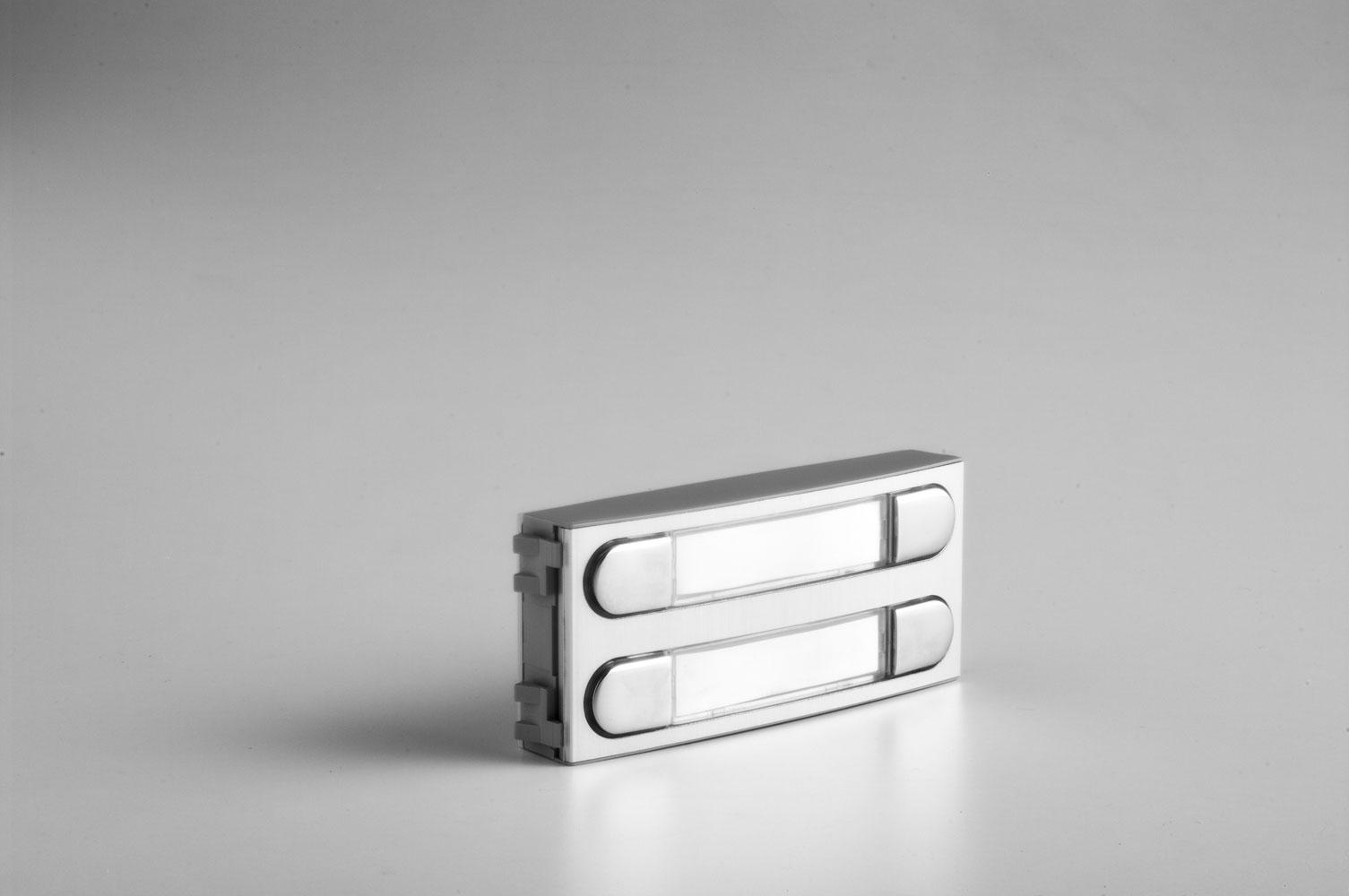

Zie meer 2 PUSH.102 V 4+N SKYLINE
REF: 7366 2-button SKYLINE module (2 rows x 1 column) for analogue 4+N and MDS system. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.

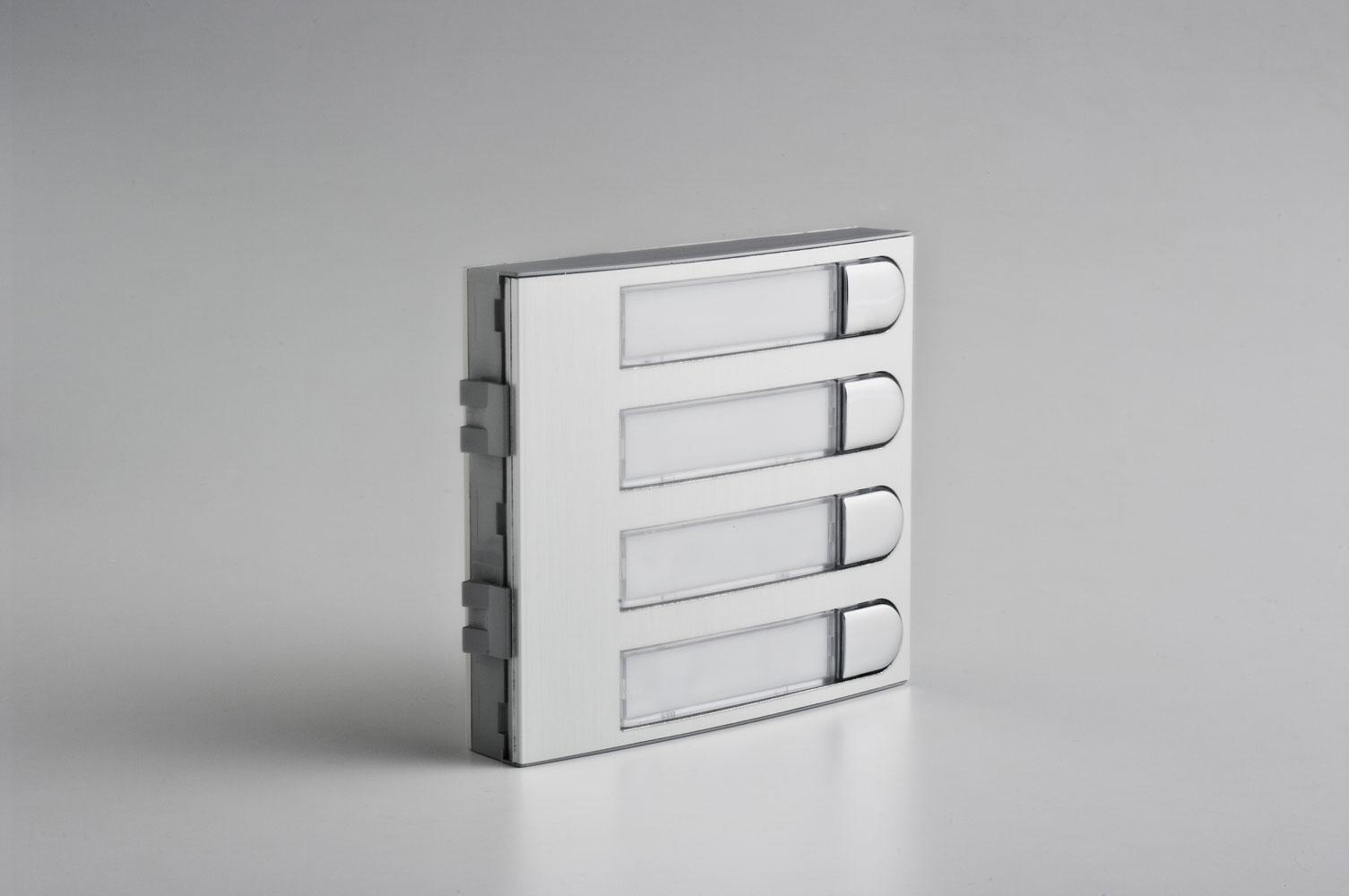

Zie meer 4 PUSH. 104 W 4+N SKYLINE

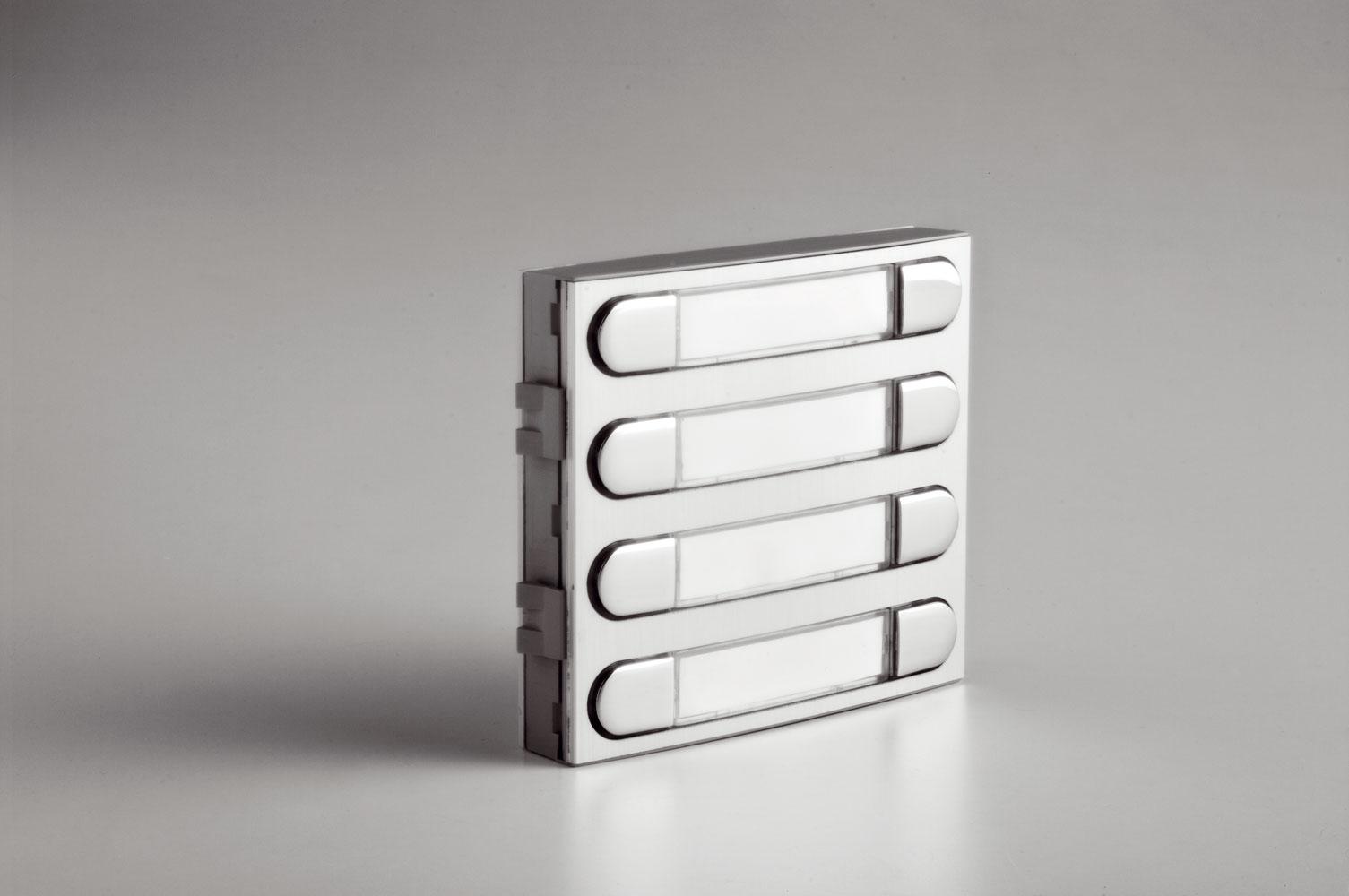

REF: 7365 SKYLINE 4-button module (4 rows x 1 column) for 4+N analogue system and MDS. Size W. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer 4 PUSH. 104 W VDS/BUS2 SKYLINE
REF: 7367 SKYLINE 4-button module (4 rows x 1 column) for DUOX PLUS, BUS2 and VDS systems. Size W. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer 4 PUSH. 202 V 4+N SKYLINE
REF: 7370 SKYLINE 4-button module (2 rows x 2 columns) for analogue 4+N and MDS system. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer 4 PUSH. 202 V VDS/BUS2 SKYLINE
REF: 7372 SKYLINE module with 4 push buttons (2 rows x 2 columns) for DUOX PLUS, BUS2 and VDS systems. Size V. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer 4+N AUDIO SKYLINE MODULE W
REF: 7400 Building Audio Amplifier Module (Complete) for analogue 4+N and MDS systems on SKYLINE panels. Size W. Anodised aluminium front. Additional functions to the kit audio amplifier (Basic).
Zie meer 4+N SKYLINE CABLE CONNECTION
REF: 2540 Connects the backlighting of pushbuttons and card holders on a 4+N panel. Measures 70 cm
Zie meer 4+N SKYLINE CABLE CONNECTION 7W
REF: 2543 To link a 4+N amplifier to a Display on MDS Digital panels. It measures 70 cm
Zie meer 8 PUSH. 204 W 4+N SKYLINE
REF: 7369 8-button SKYLINE module (4 rows x 2 columns) for analogue 4+N and MDS system. Size W. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer 8 PUSH. 204 W VDS/BUS2 SKYLINE
REF: 7371 SKYLINE module with 8 push buttons (4 rows x 2 columns) for DUOX PLUS, BUS2 and VDS systems. Size W. Anodised aluminium front and chrome-plated zamak push buttons. IP43.
Zie meer BUS2/VDS/MDS SKYLINE DIGITAL KEYPAD
REF: 7447 SKYLINE Keypad module for BUS2/VDS/MDS digital panels. Combine with: BUS2/VDS Display (7449) or MDS Display (7451). Size W
Zie meer DIGITIZER SKYLINE
REF: 7460 For configuring MDS CITY or MDS DIRECT panels. Detects call or keypad presses and sends code. Works with SKYLINE keypad (7439) and push button (7371,7372,7376,7367,7368 and 7375) MODULES. Video (7406) or Audio (7400) amplifier required
Zie meer DUOX/VDS/BUS2 SKYLINE CABLE CON. 6W
REF: 2541 For connecting a Digital Amplifier with a Display or Skyline Pushbutton modules. One cable is required for each additional SKYLINE frame. For connecting the pushbutton modules between the two frames. They measure 70 cm.
Zie meer DUOX/VDS/MDS SKYLINE DIRECT KEYPAD W
REF: 7439 SKYLINE Key panel Module for Direct DUOX PLUS/BUS2/VDS/MDS panels. Combine with: DUOX PLUS, VDS, BUS2, MDS amplifiers (Video (7406) and Audio (7400), not with Audio Kit (7399)). Size W
Zie meer MDS SKYLINE DIGITAL DISPLAY W
REF: 7451 SKYLINE module. High contrast LCD, backlit with 2 lines of 16 characters each and 3 keys (2 navigation arrows and Bell). Directory of residents. For MDS. To be combined with key panel (ref. 7447) and Amplifier 7406 or 7400

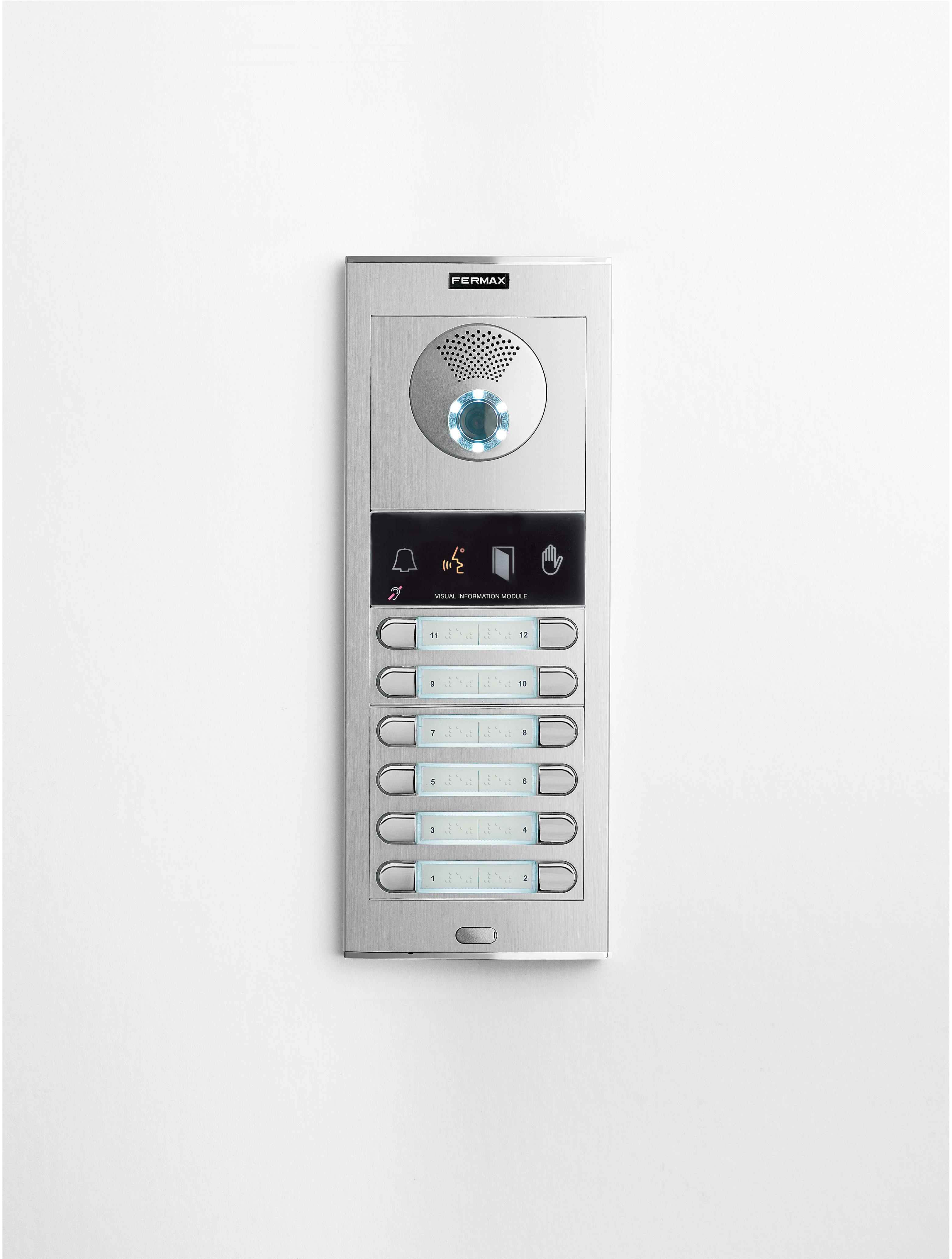

Zie meer ONE TO ONE V MODULE SKYLINE

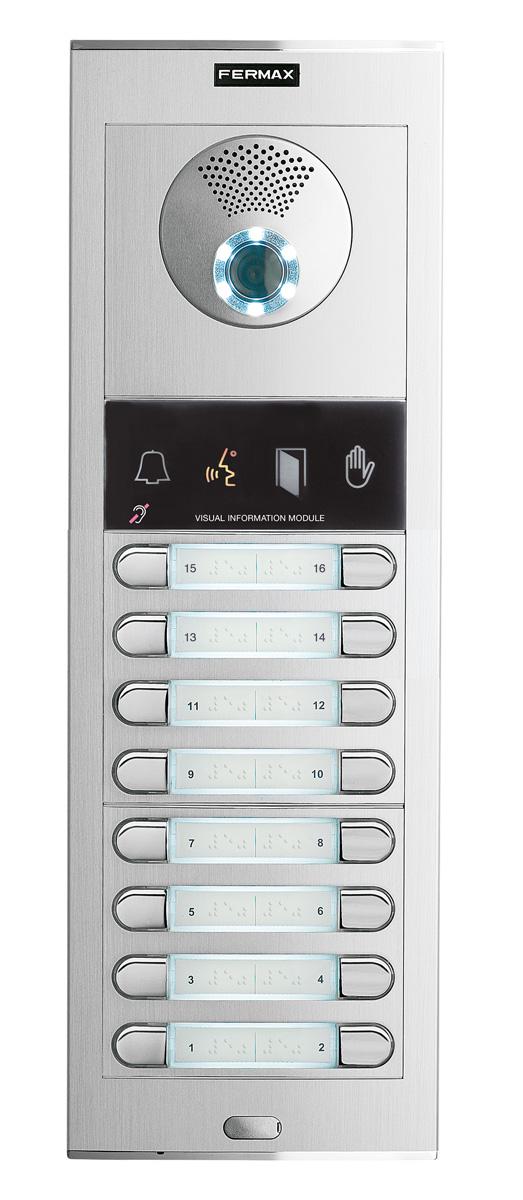

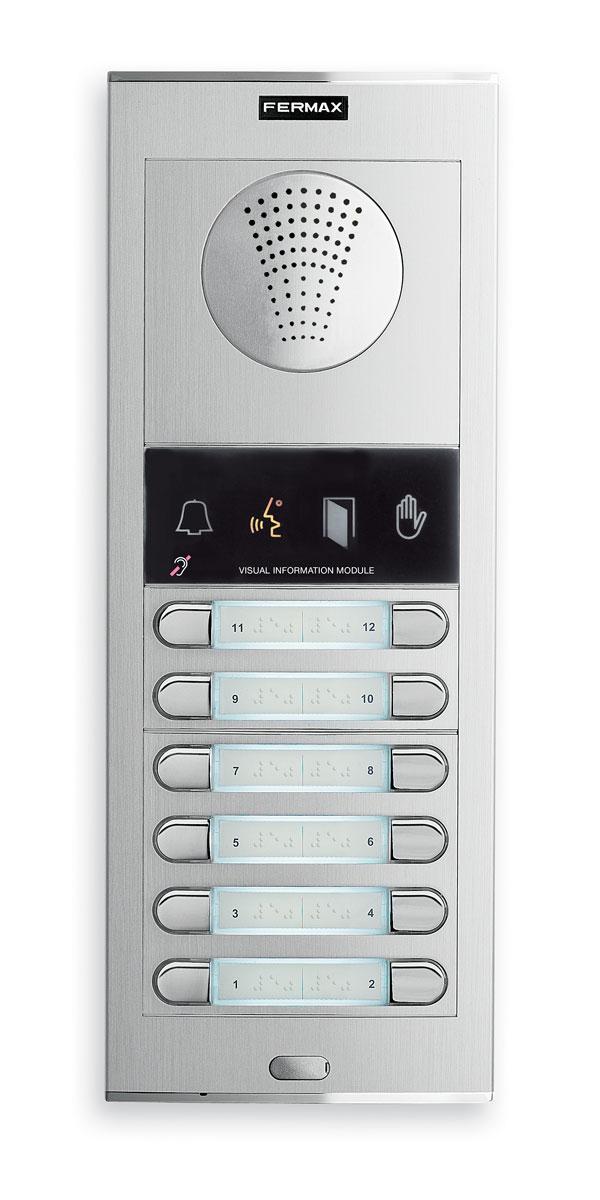

REF: 7448 Displays status by backlit pictograms: calling, conversation in progress, door open or channel busy. Compatible with DUOX PLUS, VDS, 4+N and MDS technologies.
Zie meer ONE TO ONE W/IND. LOOP V MODULE SKYLINE
REF: 7452 As (ref.7448), also including inductive loop for the hearing impaired. The loop increases the installation’s power consumption, so it is advisable to resize it accordingly. Compatible with DUOX PLUS and VDS technologies
Zie meer PROXIMITY CONNECTION CABLE 4W
REF: 2545 To link a proximity reader with a display. It measures 70 cm
Zie meer SKYL. DUOX-PROX/FING. DIG. KEYPAD
REF: 7457 SKYLINE Keypad Module for DUOX PLUS Digital panels. Combine with: Display DUOX PLUS (7470) or Display DUOX (7450). Also for building Access Controls with a double system: with EM Proximity Reader (ref. 7440) or Fingerprint Reader (ref. 6936). Size W
Zie meer SKYLINE AUDIO MODULE 4+N KIT
REF: 7399 Kit audio amplifier module (Basic) for 4+N analogue systems on SKYLINE panels. Size W. Anodised aluminium front. For additional functions select the Building (Complete) audio amplifier.
Zie meer SKYLINE FRAME 1V (S1)

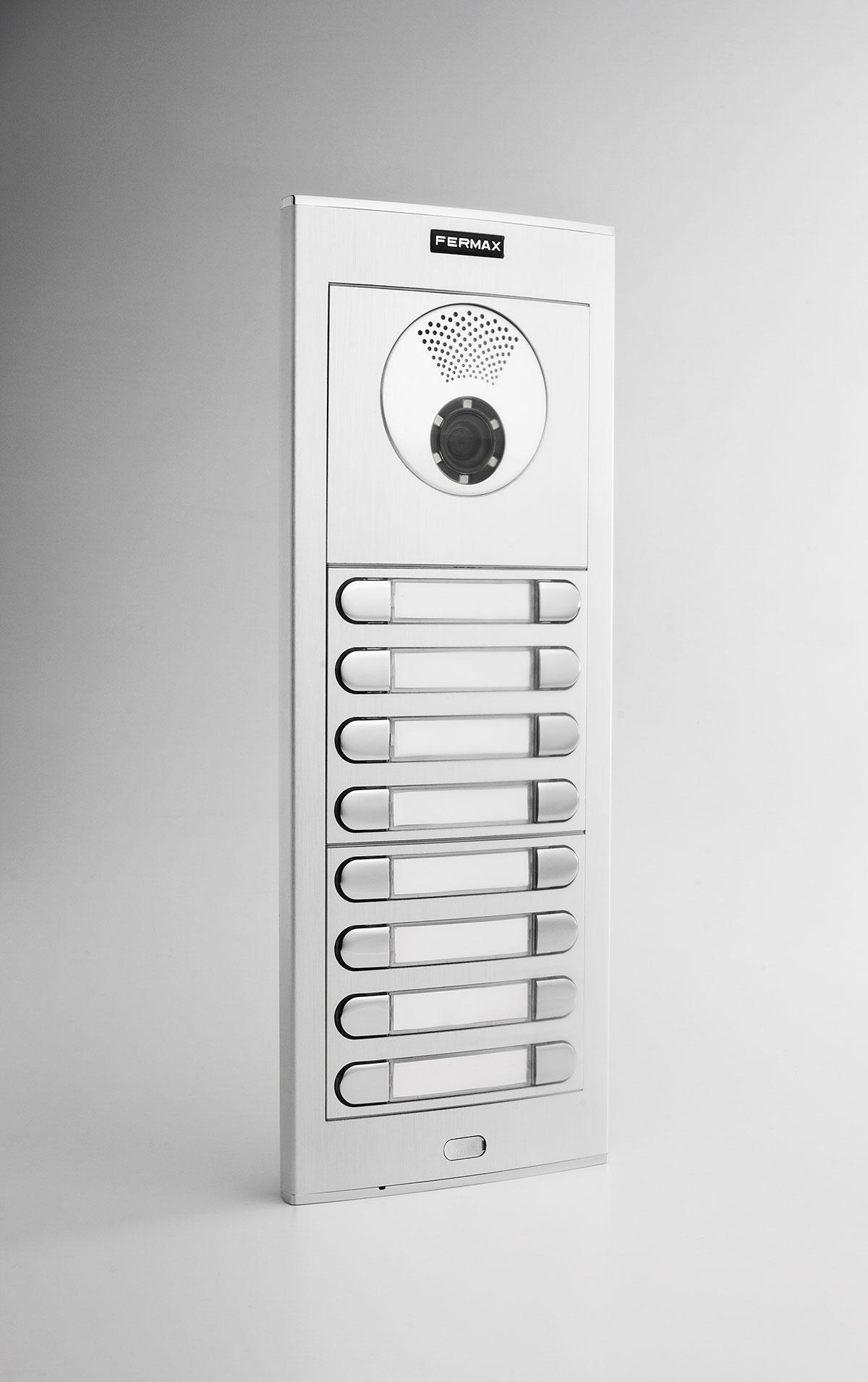

REF: 7341 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S1 (1V=1 module size V)
Zie meer SKYLINE FRAME 2V (S2 )
REF: 7332 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S2 (2V=2 modules size V)
Zie meer SKYLINE FRAME 3V (S4)
REF: 7333 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S4 (3V=3 modules size V)
Zie meer SKYLINE FRAME 4V (S5 )
REF: 7334 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S5 (4V=4 modules size V)
Zie meer SKYLINE FRAME 5V (S6 )
REF: 7335 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S6 (5V=5 modules size V)
Zie meer SKYLINE FRAME 6V (S7)
REF: 7336 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S7 (6V=6 modules size V)
Zie meer SKYLINE FRAME 7V (S8)
REF: 7337 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S8 (7V=7 modules size V)
Zie meer SKYLINE FRAME 8V (S9)
REF: 7338 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S9 (8V=8 modules size V)
Zie meer SKYLINE KEYPAD W MDS
REF: 7453 Telephone type keypad that allows the door to be opened by entering a pre-programmed code of up to 6 digits. Skyline Aesthetics
Zie meer SKYLINE METALLIC COMPLEMENT V
REF: 7442 SKYLINE module without pushbuttons with anodised aluminium front for mounting on SKYLINE panel to be exchanged for another functional module in the future (proximity, information module, panoramic card holder, etc.). Size V.
Zie meer SKYLINE METALLIC COMPLEMENT W
REF: 7443 SKYLINE module without pushbuttons with anodised aluminium front for mounting on SKYLINE panel to be exchanged for another functional module in the future (proximity, information module, panoramic card holder, etc.). Size W.
Zie meer SKYLINE PANORAMIC CARDHOLDER V

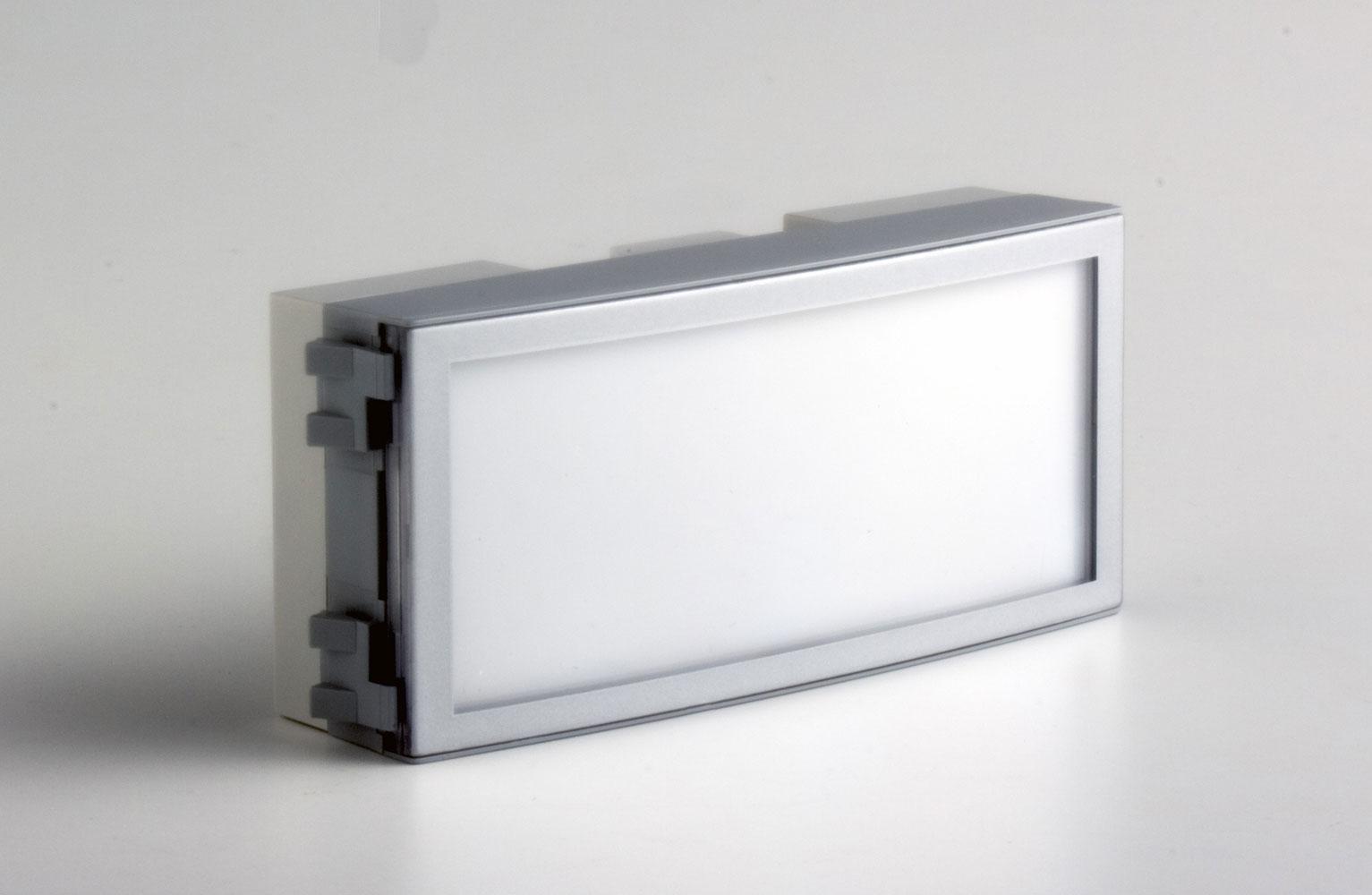

REF: 7444 SKYLINE module Illuminated information card holder to personalise the building's nameplate, indicate the building's address or serve as a directory of neighbours and door codes — vital for digital coded nameplates. Size V.
Zie meer SKYLINE PANORAMIC CARDHOLDER W
REF: 7445 SKYLINE module Illuminated information card holder to personalise the building's nameplate, indicate the building's address or serve as a directory of neighbours and door codes — vital for digital coded nameplates. Size W.

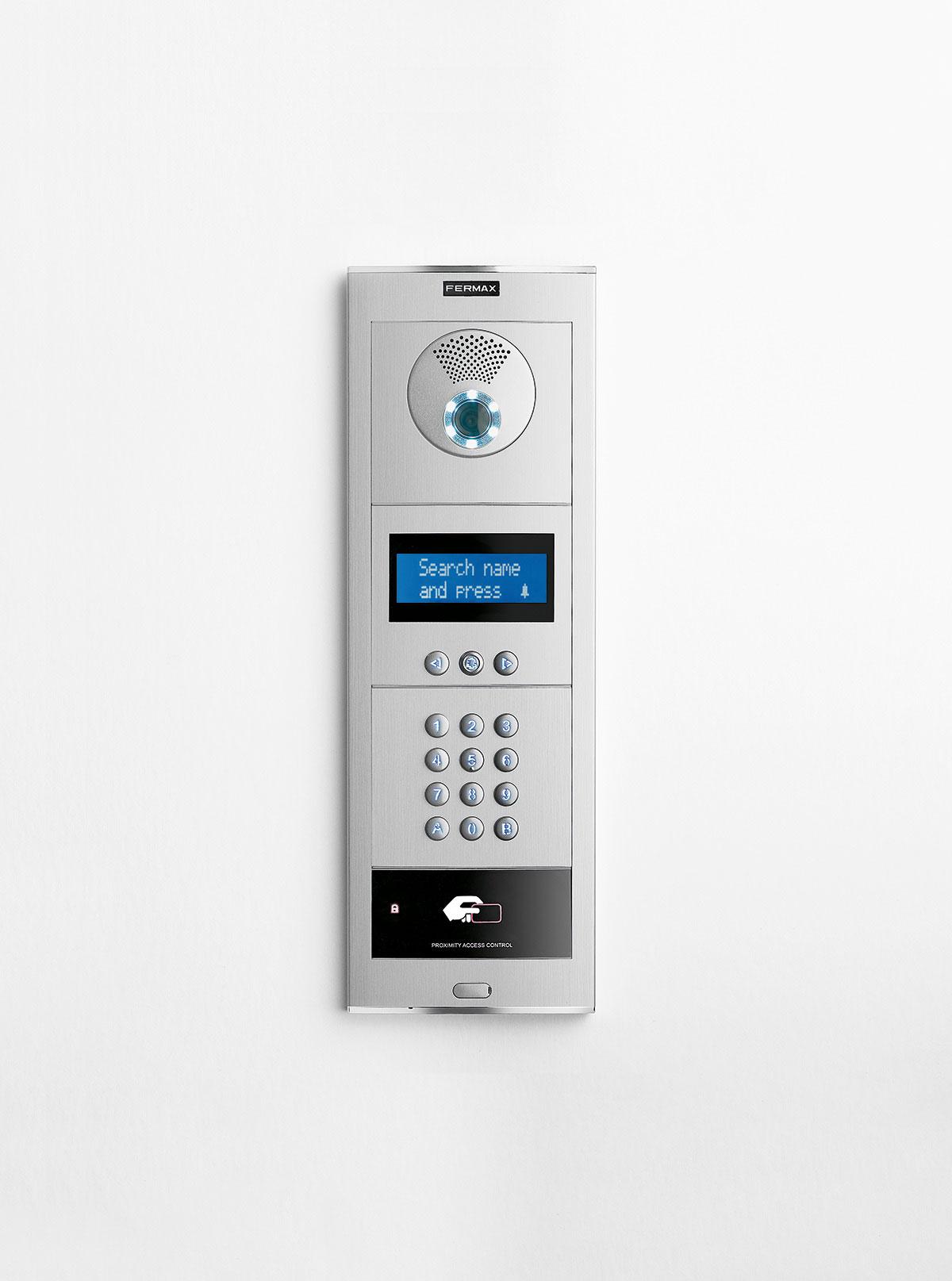

Zie meer VDS/BUS2 SKYLINE DIGITAL DISPLAY W

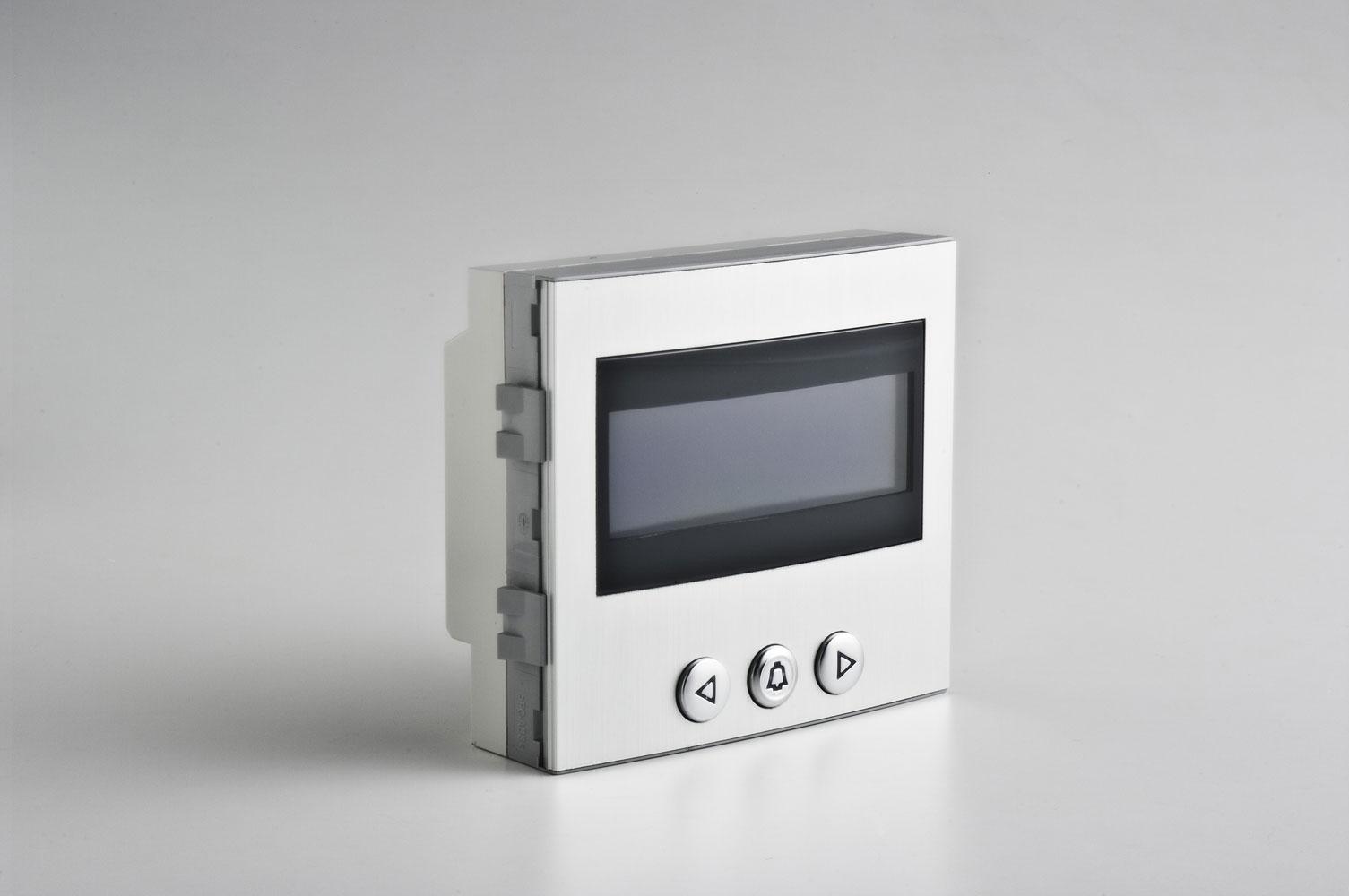

REF: 7449 SKYLINE module. High-contrast, backlit LCD with 2 lines of 16 characters each and 3 keys (2 navigation arrows and bell). Directory of residents. For VDS and BUS2. To be combined with keypad (ref. 7447) and amplifier (7406 or 7400)
Zie meer 5W CITY PANEL CABLE CONNECTION
REF: 2542 To link a Push Button Amplifier with the Call Extension Pack. They measure 70 cm.
Zie meer CITY FLUSH BOX FOR KIT (S4)
REF: 8949 Plastic flush-mounting size S4 box for Cityline, Skyline and Classic panels. In order to install an entrance panel, a box must be placed in the wall where the panel will later be fixed.
Zie meer CITY S-10 FLUSH BOX
REF: 8983 Om een plaat te plaatsen is het nodig om een doos aan de muur of muur te plaatsen waar we de plaat later zullen bevestigen.
Zie meer CITY S-11 FLUSH BOX
REF: 8467 Metal size S11 flush box for Cityline, Skyline and Classic panels. In order to install an entrance panel, a box must be placed in the wall where the panel will later be fixed.
Zie meer JOINING BOLTS SET
REF: 8829 Allows flush-mounted boxes of the same series (same size) to be joined laterally. One set is required for each additional box (panel). For Cityline, Skyline or Classic outdoor panels.
Zie meer SKYLINE FRAME 9V S10
REF: 7339 SKYLINE is a line of continuous profile modular outdoor panels, consisting of 9 frames of different sizes in which the different modules (size V or W) can be easily fitted together: S10 (9V=9 modules size V)
Zie meer SKYLINE WG MIFARE/EM PROXIMITY READER V
REF: 7461 Reader that allows the door to be opened when a multi-frequency proximity card or key fob (EM (125KHz), MIFARE (13.56MHz) and HID (125KHz, ISOProxII) is brought close to the door.
Zie meer
